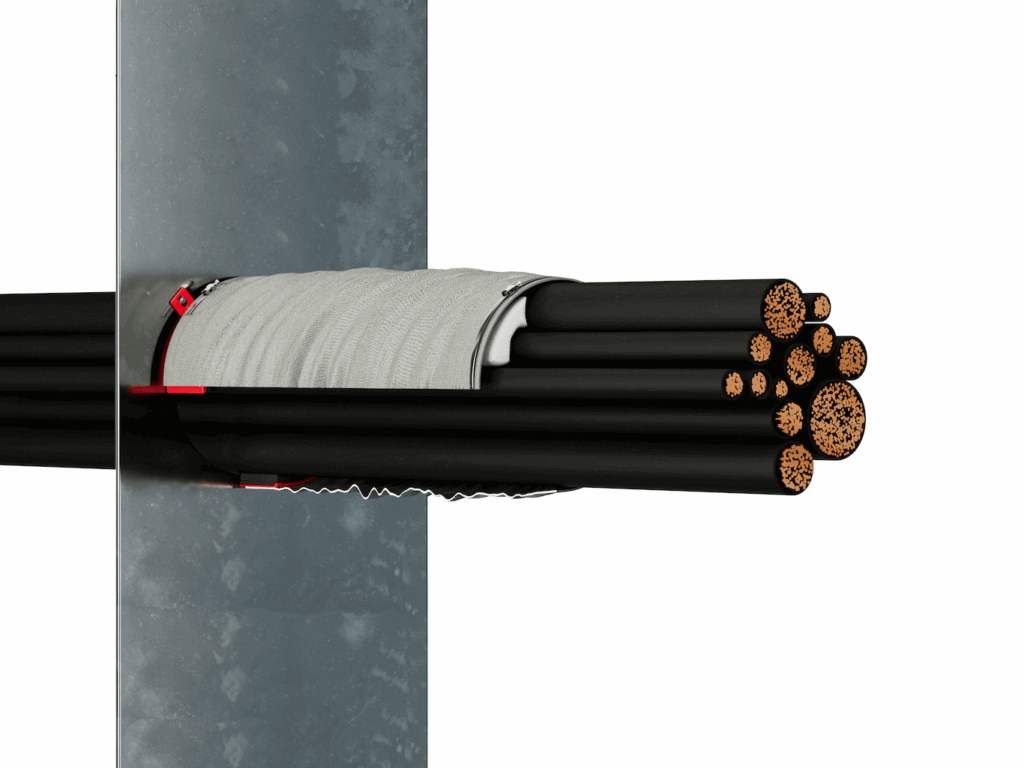

Openable steel collar with a vibration resistant locking mechanism. The collar is filled with an intumescent graphite compound in two layers.

Fire and heat resistant wrap around the collar.

Cable tie with adjustable quick release cable clamps.

Self-drilling/threading screws. Welding is also possible together with FireSeal welding lugs.

FireSeal Marine Blanket is a non-combustible calcium silicate wool that is packed between the cables for a fire and smoke resistant.

Easy Transit

Graphite Collar Material Collar:	Galvanized Steel
Graphite Collar Material Graphite:	Intumescent graphite
Graphite Collar Activation Temperature:	120-150°C
Graphite Collar Color:	Red
Graphite Collar Max Hole Size ET80:	Ø 90mm
Graphite Collar Max Hole Size ET160:	Ø 185mm
Wrap Installation Length over Cable:	Min.100 mm
Wrap Working Temperature:	Up to 1000°C for 1h
Cable Tie Socket Size:	Hex 7mm/Ph2
Cable Tie Material:	Stainless Steel
Cable Tie Max. Tightening Torque:	5Nm
Cable Tie Size for ET80:	450x9mm
Cable Tie Size for ET160:	750x9mm
Screw Dimension:	5,5x35mm
Screw Socket Size:	Hex 8mm
Screw Number of Screws Installed:	4pcs
Screw Material:	Hardened Carbon Steel SAE 1018
Screw Surface Treatment:	C3 According to EN ISO 9223
Screw Max. Screw Speed:	1500r/min
Screw Max. Drilling Capacity:	12mm
Screw Max. Tightening Torque:	12Nm
Marine Blanket Material:	Calcium silicate
Marine Blanket Color:	Off-white
Marine Blanket Density:	96kg/m³
Marine Blanket Classification Temperature:	1050°C
